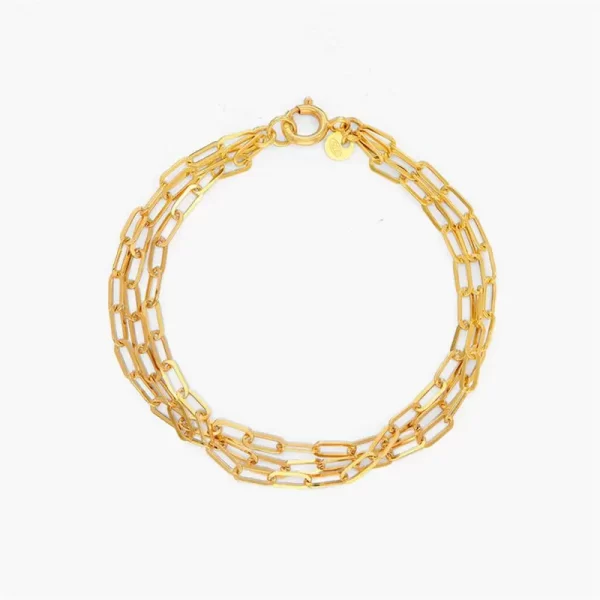

The Art of Precision: Manufacturing a Three-Layer Paperclip Chain Bracelet in Gold Vermeil at JINGYING

Introduction

In the competitive world of fashion jewelry, the paperclip chain has emerged as a dominant trend, celebrated for its modernist aesthetic and substantial feel. When stacked in three layers, this design transforms from a simple accessory into a statement of architectural elegance. At the forefront of producing such high-quality, trend-driven pieces is JINGYING Jewelry, a Guangzhou-based manufacturer with over 23 years of industry expertise .

Manufacturing a Three-Layer Paperclip Chain Bracelet in Gold Vermeil is a process that demands a fusion of precision engineering and delicate handcraft. Gold Vermeil (pronounced "ver-may") is not standard gold plating; it is a specific, high-end electroplating process requiring a sterling silver base coated with a thick layer of gold (at least 2.5 microns) . This article provides a comprehensive, step-by-step technical breakdown of how JINGYING produces these bracelets, from raw metal to the final polished, export-ready product.

Section 1: Defining the Product and Material Standards

Before delving into machinery, it is vital to understand the material specifications that define a JINGYING vermeil piece. Unlike cheap fashion accessories that use brass or copper, JINGYING adheres to strict international standards for vermeil.

1.1 The Base Metal: 925 Sterling Silver

The foundation of the bracelet is 92.5% pure silver mixed with 7.5% alloy (usually copper) for durability. JINGYING sources high-purity silver to ensure that the bracelet does not trigger skin allergies and provides a solid, heavy feel.

• Why not brass? Authentic Vermeil requires sterling silver. Brass or copper bases are merely "gold plated," which wears differently and can turn skin green .

1.2 The Paperclip Geometry

The "three-layer" design refers to three distinct chains interlocked or worn together, or one long bracelet folded into three strands. The links are elongated ovals (resembling a paperclip) with specific dimensions:

• Link Length: 12mm – 18mm

• Wire Thickness: 1.8mm – 2.5mm

• Texture: The outer edges are slightly flattened (faceted) to catch light, while the inner curve remains rounded for comfort .

1.3 The Vermeil Plating Standard

JINGYING defines Vermeil by two specific metrics:

1. Gold Purity: Minimum 14K, though 18K is common for luxury lines.

2. Thickness: A minimum of 2.5 microns of gold. (By comparison, standard "flash plating" is often only 0.05 to 0.5 microns) .

Section 2: The Manufacturing Workflow at JINGYING

Producing this bracelet involves a linear workflow: Design & Molding -> Casting -> Pre-Finishing -> Electroplating -> Assembly -> Quality Control.

Step 1: Design & 3D Modeling (CAD)

Every bracelet begins as a digital wireframe.

• Software: JINGYING uses RhinoGold and MatrixCAD.

• The Process: Designers create a 3D model where the three chains are rendered simultaneously to ensure they interlock perfectly without tangling. The tension between the links is calculated digitally.

• Output: The file is sent to an SLA (Stereolithography) 3D printer to create a high-resolution resin "master" pattern .

Step 2: Lost-Wax Casting (Creating the Silver Base)

Once the resin master is approved, it is encased in a plaster-like investment material. The mold is heated in a kiln to 750°C, burning out the resin and leaving a perfect cavity. Molten 925 Sterling Silver is then injected via vacuum or centrifugal force into the cavity .

• Result: A "sprue tree" filled with raw, matte-gray silver paperclip links and clasps.

Step 3: The "Pre-Plating" Polish

Raw cast silver has a "casting skin" – a dark, oxidized layer. You cannot plate gold directly onto this.

1. Tumbling: The links are placed in a rotary tumbler with stainless steel shot and a burnishing compound for 4-8 hours. This work-hardens the silver and smooths the surface .

2. Hand Polishing: Skilled artisans use flexible shafts and bristle brushes to reach the inside of the paperclip ovals. Any rough spot left on the silver will look like a black dot once gold is plated over it.

Step 4: The Gold Vermeil Electroplating Process

This is the most critical scientific phase. JINGYING utilizes electroplating tanks specifically reserved for vermeil production to avoid cross-contamination with base metals.

The Step-by-Step Plating Line:

1. Ultrasonic Cleaning: Links are submerged in a heated ultrasonic vat to remove finger oils and dust.

2. Activation: The silver is dipped in an acid solution to remove the natural oxide layer, ensuring the gold adheres chemically.

3. Copper Flash (Optional): A micro-layer of copper may be added to improve adhesion.

4. The Gold Bath:

   • The bracelets are racked on a spinning cathode (negative charge).

   • Solid gold plates (anodes) dissolve in the cyanide-based electrolyte solution.

   • The Vermeil Rule: JINGYING leaves the bracelets in the tank for a specific duration (approx. 60-90 minutes) to build the layer to 2.5 microns. This is significantly longer than standard plating (which takes seconds) .

5. Color Inspection: The jewelry is removed. If the client ordered 18K Yellow Gold, the color is checked against a control sample.

Step 5: Assembly & the "Three-Layer" Construction

Once plated, the individual links are assembled. Creating a three-layer bracelet requires meticulous attention to the closure.

• Link Weaving: Technicians use non-abrasive nylon pliers to interlock the three chains at the ends. The middle chain is usually slightly shorter than the outer two to create a "hugging" effect on the wrist.

• Clasp Attachment: A heavy-duty lobster clasp is attached via a soldered jump ring. Because the chain is three strands thick, JINGYING often uses a magnetic box clasp or a larger double-sided lobster clasp to ensure the bracelet does not fall off if one side snags .

Step 6: The Final Finish (Laser & Polish)

• Laser Welding: If links need to be closed permanently, JINGYING uses laser welders rather than torches. Lasers provide localized heat without melting the surrounding gold vermeil layer.

• Rhodinization (Optional): For white gold versions, a final layer of Rhodium is applied for brightness.

Section 3: Quality Control and the "Pull Test"

At JINGYING, a paperclip bracelet is only as strong as its weakest link. The factory employs rigorous testing:

3.1 Adhesion Test (The Tape Test)

High-quality vermeil does not flake. QC technicians apply high-tack tape to the bracelet and rip it off. If gold flakes come off, the batch is rejected and stripped back to silver.

3.2 Thickness Verification (XRF Spectroscopy)

JINGYING uses X-Ray Fluorescence (XRF) guns on random samples. The device reads the exact micron thickness of the gold layer. For vermeil, it must read >2.5 microns .

3.3 Tensile Strength

A machine pulls the bracelet apart. The three-layer chain must withstand up to 10kg of force without snapping. This is particularly important for paperclip links, which can bend open under stress if not properly soldered .

3.4 Salt Spray Test

To simulate years of wear, samples are placed in a salt spray chamber. This tests the porosity of the gold. If the silver underneath is exposed due to microscopic pinholes, the bracelet will tarnish from the inside out.

Section 4: Why JINGYING? Capability and Scale

Manufacturing this specific bracelet requires infrastructure that small workshops lack.

4.1 E-coating (Anti-Tarnish)

After the gold is applied, JINGYING offers an optional E-coating (Electrophoretic deposition). This is a microscopic, transparent film applied over the gold. It prevents the bracelet from scratching and keeps the "high polish" shine for years, protecting the soft 18K gold layer.

4.2 Low MOQ for Vermeil

Unlike solid gold, which requires massive capital investment, JINGYING allows for low Minimum Order Quantities (MOQs) for vermeil, sometimes as low as 50 pieces per design. This allows brands to test the "Three-Layer Paperclip" trend without over-committing .

4.3 Customization Options

While the "three-layer" design is standard, JINGYING offers variations:

• Engraving: Using fiber lasers to engrave logos or names onto the flat surface of the paperclip links .

• Two-Tone: Combining a Rose Gold outer chain with a Yellow Gold inner chain.

• Weighting: Adding internal weight to the hollow silver castings to give the bracelet a "solid gold" heft.

Conclusion

Manufacturing a Three-Layer Paperclip Chain Bracelet in Gold Vermeil at JINGYING is a journey of 23 steps, blending the ancient art of lost-wax casting with the precise science of electrochemistry.

The final product offers the best of both worlds: the weight and skin-safe nature of Sterling Silver, combined with the lustrous, rich color of 18k Gold, protected by a substantial 2.5-micron layer. For a brand looking to offer luxury at an accessible price point, JINGYING provides the technical expertise to produce these complex, layered designs at scale, ensuring every link bends correctly, every clasp catches securely, and every bracelet gleams with the quality of vermeil. .
